AQF Quality Control Blog

Inspection Process

Fabric roll measurement during an inspection

Fabric rolls measurement during an inspection by the Quality Control Blog

Fabric rolls are controlled following the widely known 4 points system; however, there are also other details checked during an inspection, such as the product’s conformity to the client’s requirements. This included the measurements, etc. How does the fabric rolls measurement work during an inspection? What are its limitations?

Fabric rolls measurement procedure

Fabric rolls length measurement

All fabric rolls factories should have this specific machine (as per the above picture) which efficiently counts the number of meters (or yards) per roll.

Fabric rolls width measurement

The fabric rolls width measurement is taken by using the measuring tape. The final measurement indicated in the inspection report by the quality inspector is based on the minimum width measured from three different locations: at the beginning, in the middle and at the end of the fabric roll.

Limitation to the fabric rolls measurement during an inspection

The calibration of the machine can affect the measurement of the length of the fabric. There is a tolerated discrepancy of more or less 1%, give or take, otherwise the buyer should mention its own tolerance levels in conveying measurements.
For knitted fabric and some elastic or smooth woven fabric, the use of inspection machine is not applicable.

The measurement of the fabric width can be different along the roll, therefore the measurement result may differ if taken elsewhere than at the beginning, in the middle and at the end of the fabric roll.

In fact the manufacturing of fabrics is quite complex, there are always discrepancies in terms of length and width. Buyers should be precise with their measurement requirements, if they vary from the usual procedure of their third party inspection partner, to ensure the fabric roll inspection is based on the same criteria.

And you: how do you proceed with the fabric rolls measurement during an inspection?

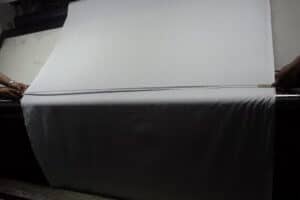

Photo taken during a pre-shipment inspection in Pakistan

0
Keywords:
Picture of AQF Operations team, write for Asian Quality Focus

AQF Operations team

Our team consists of supervisors specialized in various types of products. We handle client requests, analyse their instructions & specifications to provide qualitative inspection protocols to the inspectors for high quality reports. With the Quality Control Blog we want to tell stories taken from our daily activity to help the importers in sourcing better and safer. Get to know us!

Leave a comment

2 responses to “Fabric roll measurement during an inspection”

  1. Giacomo says:

    Hi,
    Which kind of method do you use for knitted fabric?

    • Claire Piccinno says:

      @Giacomo: the best is to unroll the fabric roll over a table (specific one, they are big and long) in order to control the measurements. Feel free to contact the AQF softlines team if you need further information!
